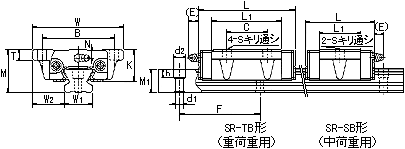

GUIDE SR-TB형 SR-TBM형
SR-SB형
SR-SBM형
|
|

|
|
|
|
호칭 형번 |
외형 치수 |
LM블록 치수 |
|
높이
M |
폭
W |
길이
L |
B |
C |
S |
L1 |
T |
K |
N |
E |
윤활유
니플 |
| *SR 15 TB/TBM
*SR 15 SB/SBM |
24 |
52 |
57
41 |
41 |
26
- |
4.5 |
39.5
22.9 |
7 |
19.5 |
6 |
5.5 |
PB1021B |
| *SR 20 TB/TBM
*SR 20 SB/SBM |
28 |
59 |
66.5
48 |
49 |
32
- |
5.5 |
46.7
27.8 |
9 |
22 |
6 |
12 |
B-M6F |
| *SR 25 TBY/TBMY
*SR 25 SBY/SBMY |
33 |
73 |
83
60 |
60 |
35
- |
7 |
59
35.2 |
10 |
26 |
7 |
12 |
B-M6F |
| *SR 30 TB/TBM
*SR 30 SB/SBM |
42 |
90 |
97
68 |
72 |
40
- |
9 |
69.3
40.4 |
10 |
32.5 |
8 |
12 |
B-M6F |
| *SR 35 TB/TBM
*SR 35 SB/SBM |
48 |
100 |
111
78 |
82 |
50
- |
9 |
79
45.7 |
13 |
36.5 |
8.5 |
12 |
B-M6F |
| SR 45 TB |
60 |
120 |
126 |
100 |
60 |
11 |
90.5 |
15 |
47.5 |
11.5 |
16 |
B-PT1/8 |
| SR 55 TB |
68 |
140 |
156 |
116 |
75 |
14 |
117 |
17 |
54.5 |
12 |
16 |
B-PT1/8 | |
|
|
|
호칭 형번 |
LM레일 치수 |
기본정격하중 |
질량 |
|
폭
W1
±0.05 |
W2 |
높이
M1 |
피치
F |
d1×d2×h |
C
kN |
C0
kN |
LM블록
kg |
LM레일
kg/m |
| *SR 15 TB/TBM
*SR 15 SB/SBM |
15 |
18.5 |
12.5 |
60 |
3.5×6×4.5 |
9.51
5.39 |
19.3
11.1 |
0.2
0.15 |
1.2 |
| *SR 20 TB/TBM
*SR 20 SB/SBM |
20 |
19.5 |
15.5 |
60 |
6×9.5×8.5 |
12.5
7.16 |
25.2
14.4 |
0.4
0.3 |
2.1 |
| *SR 25 TBY/TBMY
*SR 25 SBY/SBMY |
23 |
25 |
18 |
60 |
7×11×9 |
20.3
11.7 |
39.5
22.5 |
0.6
0.4 |
2.7 |
| *SR 30 TB/TBM
*SR 30 SB/SBM |
28 |
31 |
23 |
80 |
7×11×9 |
30
17.2 |
56.8
32.5 |
1.1
0.8 |
4.3 |
| *SR 35 TB/TBM
*SR 35 SB/SBM |
34 |
33 |
27.5 |
80 |
9×14×12 |
41.7
23.8 |
77.2
44.1 |
1.5
1.0 |
6.4 |
| SR 45 TB |
45 |
37.5 |
35.5 |
105 |
11×17.5×14 |
55.3 |
101 |
2.5 |
11.3 |
| SR 55 TB |
48 |
46 |
38 |
120 |
14×20×17 |
89.1 |
157 |
4.2 |
12.8 | |
|
|
