◀BACK

▶LM GUIDE- SNR , SNS-R형   SNR , SNS-LR형




SNR·SNS-R



SNR·SNS-LR

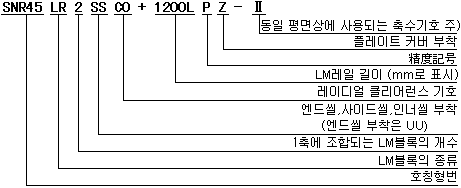

호칭 형번

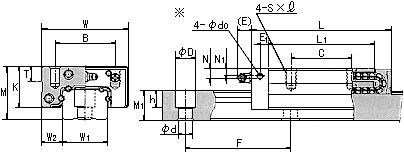

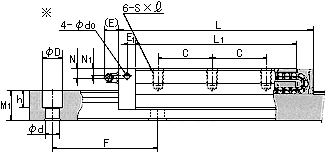

외형 치수

LM블록 치수

높이
M

폭
W

길이
L

B

C

S×

L1

T

K

N

N1

E

E1

d0

구리스
니플

SNR 25 R
SNS 25 R
SNR 25 LR
SNS 25 LR

31

50

84
103

32

35
25

M6×8

62.4
81.6

10

25.5

7

6

10

4

3.9

B-M6F

SNR 30 R
SNS 30 R
SNR 30 LR
SNS 30 LR

38

60

98
120.5

40

40
30

M8×10

72.1
94.6

10

31

7

7

10

6.5

3.9

B-M6F

SNR 35 R
SNS 35 R
SNR 35 LR
SNS 35 LR

44

70

109.5
135

50

50
36

M8×12

79
104.5

12

35

8

8

9

6

5.2

B-M6F

SNR 45 R
SNS 45 R
SNR 45 LR
SNS 45 LR

52

86

138.2
171

60

60
40

M10×17

105
137.8

15

40.4

10

8

14

8.5

5.2

B-PT1/8

SNR 55 R
SNS 55 R
SNR 55 LR
SNS 55 LR

63

100

163.3
200.5

65

75
47.5

M12×18

123.6
160.8

18

49

11

10

13

10

5.2

B-PT1/8

SNR 65 R
SNS 65 R
SNR 65 LR
SNS 65 LR

75

126

186
246

76

70
55

M16×20

143.6
203.6

22

60

16

15

13.5

9

8.2

B-PT1/8



호칭 형번

LM레일 치수

기본정격하중

질량

폭

W1

 0
-0.05

W2

높이
M1

피치
F

d×D×h

SNR형

SNS형

LM블록
kg

LM레일
kg/m

C
kN

C0
kN

C
kN

C0
kN

SNR 25 R
SNS 25 R
SNR 25 LR
SNS 25 LR

25

12.5

17

40

6×9.5×8.5

31
42

79
101

26
35

61
78

0.4
0.6

3.1

SNR 30 R
SNS 30 R
SNR 30 LR
SNS 30 LR

28

16

21

80

7×11×9

49
65

106
138

40
54

81
106

0.7
0.9

4.4

SNR 35 R
SNS 35 R
SNR 35 LR
SNS 35 LR

34

18

24.5

80

9×14×12

63
86

144
188

52
71

110
144

1.0
1.4

6.2

SNR 45 R
SNS 45 R
SNR 45 LR
SNS 45 LR

45

20.5

29

105

14×20×17

96
126

216
288

80
105

167
222

1.9
2.4

9.8

SNR 55 R
SNS 55 R
SNR 55 LR
SNS 55 LR

53

23.5

36.5

120

16×23×20

131
170

292
383

109
141

225
295

3.1
4.0

14.5

SNR 65 R
SNS 65 R
SNR 65 LR
SNS 65 LR

63

31.5

43

150

18×26×22

189
260

409
572

157
216

315
441

5.6
8.0

20.5
