 ◀BACK

▶로크너트

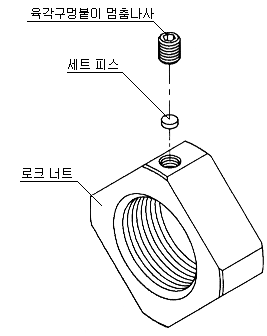

그림 5　 로크 너트의 구조

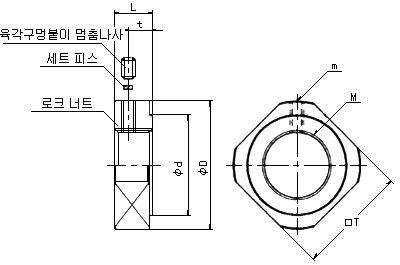

로크 너트 RN형



호칭형번

M

m

D

d

L

t

T

RN 4

M4×0.5

M2.6

11.5

8

5

2.7

10

RN 5

M5×0.5

M2.6

13.5

9

5

2.7

11

RN 6

M6×0.75

M3×0.5

14.5

10

5

2.7

12

RN 8

M8×1

M3×0.5

17

13

6.5

4

14

RN 10

M10×1

M3×0.5

20

15

8

5.5

16

RN 12

M12×1

M3×0.5

22

17

8

5.5

19

RN 15

M15×1

M3×0.5

25

21

8

4.5

22

RN 17

M17×1

M4×0.7

30

25

13

9

24

RN 20

M20×1

M4×0.7

35

26

11

7

30

RN 25

M25×1.5

M5×0.8

43

33

15

10

35

RN 30

M30×1.5

M6

48

39

20

14

40

RN 35

M35×1.5

M8

60

46

21

14

50

RN 40

M40×1.5

M8

63

51

25

18

50
