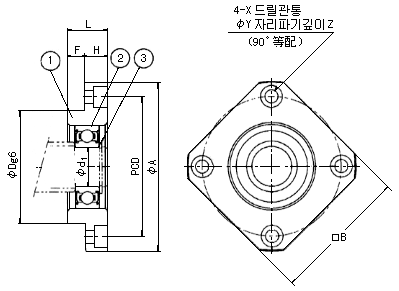

▶FF형 서포트 유니트 지지측 원형





호칭형번

축경
d1

L

H

F

D

A

PCD

B

X

Y

Z

사용 베어링

사용 스냅링

FF 6

6

10

6

4

22

-0.007
-0.020

36

28

28

3.4

6.5

4

606ZZ

C 6

FF 10

8

12

7

5

28

-0.007
-0.020

43

35

35

3.4

6.5

4

608ZZ

C 8

FF 12

10

15

7

8

34

-0.009
-0.025

52

42

42

4.5

8

4

6000ZZ

C 10

FF 15

15

17

9

8

40

-0.009
-0.025

63

50

52

5.5

9.5

5.5

6002ZZ

C 15

FF 20

20

20

11

9

57

-0.010
-0.029

85

70

68

6.6

11

6.5

6204ZZ

C 20

FF 25

25

24

14

10

63

-0.010
-0.029

98

80

79

9

14

8.5

6205ZZ

C 25

FF 30

30

27

18

9

75

-0.010
-0.029

117

95

93

11

17.5

11

6206ZZ

C 30
