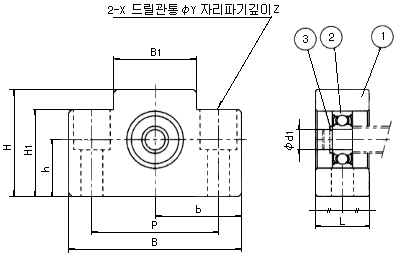

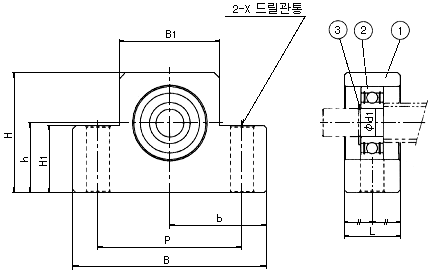

▶EF형 서포트 유니트 지지측 각형



EF6, 8

EF10∼20



호칭형번

축경
d1

L

B

H

b±0.02

h±0.02

B1

H1

P

X

Y

Z

사용 베어링

사용 스냅링

EF 6

6

12

42

25

21

13

18

20

30

5.5

9.5

11

606ZZ

C 6

EF 8

6

14

52

32

26

17

25

26

38

6.6

11

12

606ZZ

C 6

EF 10

8

20

70

43

35

25

36

24

52

9

-

-

608ZZ

C 8

EF 12

10

20

70

43

35

25

36

24

52

9

-

-

6000ZZ

C 10

EF 15

15

20

80

49

40

30

41

25

60

9

-

-

6002ZZ

C 15

EF 20

20

26

95

58

47.5

30

56

25

75

11

-

-

6204ZZ

C 20



부번

부품명

개수

1

하우징

1

2

베어링

1

3

스냅링

1
