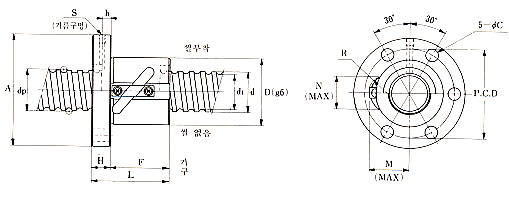

▶ 전조 볼나사 (BSF 형)







호칭번호 d ℓ dp

回路數
列X卷

기본정격하중

 너트치수 표준폭
길이
Ca
kgf		 C0a
kgf		 D L A H F PCD M N S

R
BSF 1404C 14 4 14.4 1X3.65 570 1170 25 40 43 10 30 34 17 16 M6×1 8

500,1000

BSF 1405A 14 5 14.5 1X2.65 510 1160 25 40 43 10 30 34 18 16 M6×1 8
BSF 1808C 18 8 19.3 1X3.65 1340 3170 34 61 64 12 49 49 27 26 M6×1 13
BSF 2005A 20 5 20.5 1X2.65 610 1690 34 40 54 10 30 44 22 20 M6×1 10

500,1000,1500

BSF 2505A

25

 5 25.5 1X2.65

680

2130

 40 40 64 10 30 52 25 23 M6×1 12
BSF 2510B 25 10 26.8 1X2.65 3190 8540 44 98 80 15 83 62 30 32 M6×1 15
BSF 2806A

28

 6 28.5 1X2.65 720 2390 44 47 73 12 35 58 28 25 M6×1 13

500,1000,2000
2500

BSF 2806B 28 6 28.5 2X2.65

1300

4780

 44 65 73 12 53 58 28 25 M6×1 13
BSF 3610A

36

10

 37.0 1X2.65 2130 6160 60 70 100 17 53 80 38 38 M6×1 20

500,1000,2000
2500,3000

BSF 3610B 36 10 37.0 2X2.65

3860

12100

 60 100 100 17 83 80 38 38 M6×1 20

BSF 4512B

45

12

46.5

2X2.65

5060

17300

70

118

116

20

98

92

44

44

M6×1

13

1000,1500,2000
3000,3500,4000
