◀BACK

▶LM GUIDE RHS-M형(스테인레스 타입)

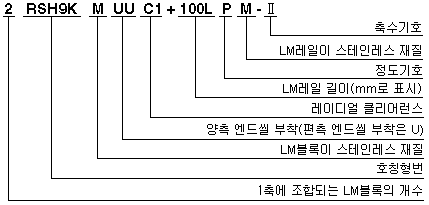

호칭 형번

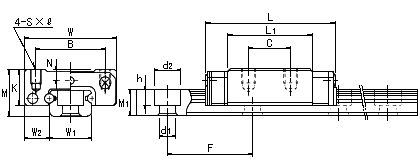

외형 치수

LM블록 치수

높이
M

폭
W

길이
L

B

C

S×

L 1

K

N

기름구멍

RSH 7 M

8

17

23.5

12

8

M2×2.5

13.4

6.5

1.7

φ1.2드릴구멍

RSH 9 KM

10

20

31

15

10

M3×3.0

19.8

7.8

2.4

φ1.5드릴구멍

RSH 12 VM

13

27

35

20

15

M3×3.5

20.6

10

3

φ2드릴구멍



호칭 형번

LM레일 치수

기본정격하중

질량

W1

W2

M1

F

d1×d2×h

C
N

C0
N

LM블록
kg

LM레일
kg/m

RSH 7 M

7

 0
-0.02

5

4.7

15

2.4×4.2×2.3

880

1370

0.010

0.23

RSH 9 KM

9

 0
-0.02

5.5

5.5

20

3.5×6×3.3

1470

2250

0.018

0.32

RSH 12 VM

12

 0
-0.025

7.5

7.5

25

3.5×6×4.5

2650

4020

0.037

0.58
