◀BACK

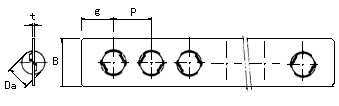

▶볼케이지 B형










호칭형번

주요치수

기본정격하중
(볼 1개당)

조합
레일

Da

t

B

P

g

CZ
N

C0Z
N

B 1

1.5

0.2

3.5

2.5

2

7.84

21.6

V 1

B 2

2

0.3

5

4

3

12.7

39.2

V 2

B 3

3

0.4

7

6

4.5

27.5

87.3

V 3

B 4

4

0.5

9

7

4.5

45.1

155

V 4

B 6

6

0.6

13.5

10

6

98

353

V 6

B 9

9.525

1.0

19

14

8.5

216

784

V 9

B 12

11.906

1.0

25

20

12.5

324

1420

V 12

B 15

15.081

1.2

31

25

15

490

2160

V 15
